TACMINA |
 |
Metering
Pump, Liqud Control |
|
|
Solenoid-Driven Metering Pump |
| PZi Series |
|
|
|
|
Popular
PZ Series with
Intelligent
Brain Now Mounted!!
When the next
input signal
is entered to
a PZi pump during
the operation
in the multiplication
mode, the number
of pumping action
after operation
will be added
(max. 9999 times).
|
|
.gif) |
| <Applications> |
|
- Chlorine
sterilization
for
small-scale
water-supply
system,food
plants,
buildings
and
swiming
pools
- Injection
of
chemicals
to
boilers
- Chemical
injection
in
the
fleld
of
physics
and
chemistry
plus
medical
cure
- Very
low
flow
rate
at
a
high
pressure
injection
of
various
other
liquids
|
|
|
|
Ο
PZi Variation
| |
PZi4 |
PZi8 |
| Manual
control |
Ο*1 |
Ο*1 |
| Stop
Signal input
(ex.Level switch
interlock) |
Ο |
Ο |
| Operation
display |
Ο |
Ο |
| Signal
input |
Pulse
signal
(Frequency-division
1/1 to 1/9999)
(Multiplication
1 to 9999) |
Ο |
Ο |
Analog
signal
Shift function
Proportional band
function |
Ο |
Ο |
| Signal
output |
Alarm
output
(Level switch,
injection monitor*)
*Combination with
the discharge
volume checker |
- |
Ο |
Operation
pulse signal
(Synchronized
with the solenoid
drive) |
- |
Ο |
Operation
progress signal
(Output during
the operation) |
- |
Ο |
| Other
function |
Interval
operation |
- |
Ο |
| Counter |
- |
Ο |
*1:Digital
setting by the Touch-panel
Ο Performance
Specifications
| Model |
PZi series |
ARPZi series |
| Specification
|
-31 |
-61 |
-12 |
-32 |
-52 |
-31 |
-61 |
-12 |
| Max.
discharge volume
(mL/min) |
30 |
60 |
100 |
360 |
540 |
27 |
54 |
93 |
| Max.
discharge pressure
(MPa) |
1.0 |
0.8 |
0.4 |
0.3 |
0.2 |
1.0 |
0.8 |
0.4 |
| Strokes
per minute (spm) |
1
to 300 |
Piping
connection
(in case of PE
tube) |
Discharge
side |
Dia.6×
dia.8 |
Dia.6×
dia.8 |
Dia.6×
dia.8 |
Dia.9×
dia.12 |
Dia.9×
dia.12 |
Dia.6×
dia.8 |
Dia.6×
dia.8 |
Dia.6×
dia.8 |
| Suction
side |
| Power
supply (V)
|
Rating |
100
to 240 |
| Operating
range
|
90
to 264 |
| Frequency
(Hz) |
50/60 |
| Number
of phases (φ)
|
1 |
| Peak
current (A) |
2 |
2.5 |
2.5 |
3 |
3 |
2 |
2.5 |
2.5 |
| Max.
power consumption
(VA)
|
200 |
250 |
250 |
500 |
500 |
200 |
250 |
250 |
| Average
power consumption
(W) |
15 |
18 |
18 |
30 |
30 |
15 |
18 |
18 |
| Weight
(kg) |
1.7 |
1.8 |
1.8 |
4.0 |
4.0 |
1.9 |
1.9 |
1.8 |
Note:
- Discharge volume
values are for reference
only, and may differ
slightly according
to individual site
conditions and product
differences. (conditions:
room temperature,
clean water, suction
height -1.5 m)
- Max. discharge viscosity
is 50 mPa•s.
- The solenoid is
not explosion-proof.
Take sufficient not
of this when selecting
the model.
- These values are
for liquid-end material
types FEC, FFC, VEC,
VFC and CL. Contact
your supplying agent
separately for other
materials.
- Hose is provided
in the case of FEC/FFC
(CL on ARPZi) type.
Ο Liquid-End
Materials
| Liquid end type |
Pump head |
Joint |
Diaphragm |
Valve seat |
Check ball |
| VEC |
PVC |
PVC |
PTFE |
EPDM |
Ceramic |
| VFC |
PVC |
PVC |
PTFE |
Special
fluoro-rubber |
Ceramic |
FEC
(31/61/12 models
only) |
PVDF |
PVDF |
PTFE |
EPDM |
Ceramic |
FFC
(31/61/12 models
only) |
PVDF |
PVDF |
PTFE |
Special
fluoro-rubber |
Ceramic |
CL
(31/61/12 models
only) |
Acrylic |
PVC |
PTFE |
Special
fluoro-rubber |
Ceramic |
FTC
(31/61/12 models
only) |
PVDF |
PVDF |
PTFE |
PTFE |
Ceramic |
FTC
(31/52 models
only) |
PVDF |
PVDF |
PTFE |
- |
Ceramic |
6TC
(31/61/12 models)
|
SUS316 |
SUS316 |
PTFE |
- |
Ceramic |
STC
(32/52 models)
|
SUS304 |
SUS304 |
PTFE |
- |
Ceramic |
Notes:
- Special fluoro-rubber,
or Vyton by trade
name, is a copolymer
of vinylidene fluoride
and propylene hexafluoride.
It is approved by
The Food Sanitation
Test by Ordinance
434 of the Ministry
of Health and Welfare
of Japan.
- EPDM is a copolymer
of ethylene, propylene,
and diene compounds,
and is approved by
The Food Sanitation
Test by Ordinance
434 of the Ministry
of Health and Welfare
of Japan.
- PVDF (polyvinylidene
fluoride) is a di-fluoride
resin, and is approved
by The Food Sanitation
Test by Ordinance
434 of the Ministry
of Health and Welfare
of Japan.
- PTFE (tetrafluoroethylene
resin), or Teflon
by trade name, is
a type of fluoride
resin.
- The 6TC, STC and
FTC types are custom
order products.
Ο Analog signal
input
| |
|
[PZi4][PZi8]
DC4 (0) to 20mA
input |
| (1) |
Proportional
band function |
 |
| |
(A) |
Pump
can operate at
100% even if
the input signal
is not 100% (20mA). |
| |
(B) |
Pump
does not operate
at full capacity
even if the input
signal is 100%
(20mA). |
| (2) |
Shift
function |
 |
| |
(A) |
Pump
discharges the
minimum amount
even if the input
signal is 0 (4mA). |
| |
(B) |
Pump
does not start
injection
until the input
exceeds a certain
value. |
Ο Pulse signal
input
| (1) |
Frequency-division
(1/1 to 1/9999
adjustable) |
[PZi4][PZi8] |
| |
 |

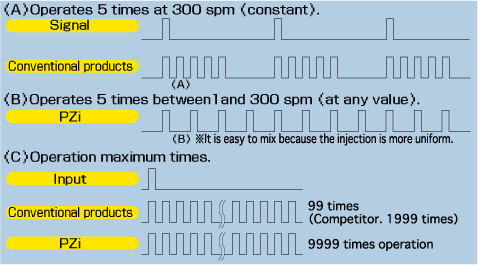

| (2) |
Multiplication
(1 to 9999 adjustable) |
| |
 |
Ο Stop-signal
input
| |
[PZi4][PZi8] |
|
ex.Level
switch control
When the tank
is empty:
- The pump
stops [PZi4]
- The pump
stops [PZi8]
- The alarm
indication
works.
- Alarm Signal
is outputted.
|
 |
Ο Pulse signal
input
| (1) |
Counter (Metering
batch injection) |
[PZi8] |
| |
Pump
operates up to
max.9999 × 1000
times by the start(switch)signal.
Multiplication
setting.(Such
as × 1, × 10,
× 100 and × 1000.)is
available.
Type 31 discharges
up to max. 0.99
× 1000. L by one
signal. (Indication
counts down.) |

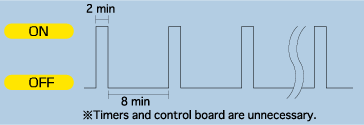

| (2) |
Interval function |
|
| |
ON
time and OFF interval
can be freely
set
from 1 to 9999
min. respectively.
(Operation repeats
this setting.) |
 |
|
|
| |
| |
|
|
| |
|
