TACMINA |
 |
Metering
Pump, Liqud Control |
|
|
Solenoid-Driven Metering Pump |
|
| PZiG Series |
|
|
|
| PZiG
Series pump can
provide complete
and various control
configurations,
simplifying your
system and drastically
reducing overall
costs. |
|
|
| <Features> |
|
- Large
Capacity
&
High-pressure
Injection
A
line-up
of
five
models
with
a
capacity
of
300
to
1300
mL/min
is
available.
- High-viscosity
Liquid
Compatible
Available
for
injection
of
polymer
coagulants.
- Compatible
with
a
Wide
Range
of
Chemicals
Three
different
materials
including
the
highly
corrosion-resistant
PVDF
are
available
to
ensure
compatibility
with
almost
all
chemicals.
(SUS304
and
SUS316
models
are
custom-order
products.)
- Easy-to-use
Panel
Large
control
buttons
and
a
large,
easy-to-view
2-stage
display
LCD
screen
- Wide
Power
Supply
Range
Standard
specification
supports
power
supplies
within
the
range
90
to
264
VAC(50/60
Hz).
- Outdoor
Specification
IEC
standard
IP65
or
equivalent.
Electromagnetic
noise
resistance
meets
the
high-level
CE
standard.
|
|
|
| <Applications> |
|
- Automatic
injection
of
chemicals
and
the
fields
of
physics
and
chemistry
and
medical
care
- Automatic
injection
of
detergent
into
scrubbers
- Automatic
supply
of
sterilizing
agents
to
electrolytic
water
sterilizers
- Automatic
injection
of
pH
conditioners
and
polymer
coagulants
for
water
treatment
- Automatic
injection
of
nutrients
and
disinfectants
in
hydroponics
farms
and
stockbreeding
sites
such
as
chicken
and
pig
farms,
etc.
- Integration
into
various
equipment
and
units
|
|
|
|
Ο
Performance Specifications
| Model |
300
model |
500
model |
700
model |
1000
model |
1300
model |
| Max.
discharge volume
(50/60Hz) |
mL/min. |
340 |
530 |
760 |
1000 |
1300 |
| mL/stroke |
1.1 |
1.8 |
2.5 |
3.3 |
4.3 |
| Max.
discharge pressure
(MPa) |
1.0
*1 |
0.7
*1 |
0.4 |
0.3 |
0.2 |
| Stroke
length (mm)
|
0.5 |
| Stroke
length adustment
range |
20
to 100% |
| Strokes
(spm) |
0
to 300 |
Connection
apeture |
Standard
specification
(VTCE/VTCF) |
PVC
braided house
12 x 18 mm dia. |
| Hight-viscosity
specification
(VTCF) |
VP20
union joint *2 |
| PVDF
specifications
(FTCT) |
PTFE
tube 12 x 15 mm
dia. |
| Compatible
viscosity |
Standard
specification
(50 mPa•s
max.)
High-viscosity
specification
(50 to 1000 mPa•s) |
| Weight
Approx. |
11kg |
*1 : In the case of the PVDF specification
(FTCT), the max. discharge
output is 0.5 MPa.
*2 : Union only in the
case of the high-viscosity
specification
Ο Control Variations
| Basic specifications |
Aqustment range |
Number
of strokes |
1
to 300 spm (1
spm step) |
| Stroke
length adjustment |
20
to 100% |
| Number of input ports |
Analog
input |
1 |
| Digital
input high speed/low
speed |
2/2 |
| Number of output ports |
Power
supply output
for sensor |
1 |
| Run mode |
LCD
display |
Display
unit selection
(%, mL, spm) |
| Manual
operation |
Manual
mode |
| Automatic operation |
Analog
mode |
Analog
signal |
4
to 20mA |
| Pulse
signal |
1/1
to 1/9999 |
| Pulse
signal |
1
to 9999 times
|
| Count
mode |
Number
of strokes |
1
to 9999 (x 1,10,100,1000) |
| Interval
mode |
ON/OFF
time |
1
to 9999 mins/1
to 9999 mins |
| Control |
Control
input |
Stop
input |
| Level
switch input |
| Alarm
reset input |
| Start/reset
input |
| Control
output |
Operation
signal output |
| Operation
sync pulse output
*1 |
| End
signal output
*2 |
| Alarm |
Alarm
output |
Analog
input error alarm
*3 |
| Input
pulse buffer overflow
alarm *3 |
| Level
error alarm *3 |
| Injection
monitor error
alarm *3 |
*1 : Output in sync with solenoid
operation
*2 : Output when operation
for present count is completed
*3 : Alarm display, alarm
output and pump operation
at an alarm occurrence
can be selected.
Ο External Dimension

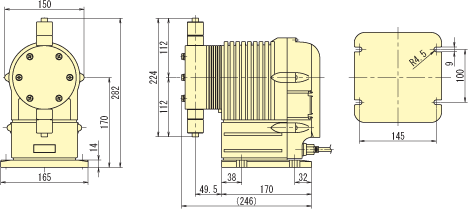

PZiG-300/500-VTCE-HW
PZiG-700-VTCE-HW

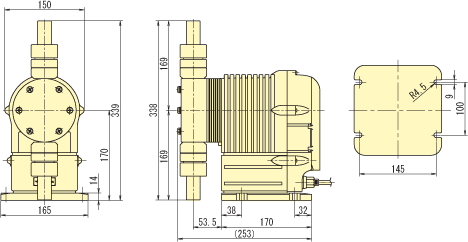

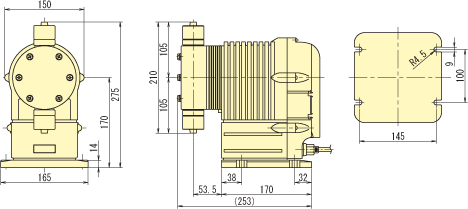

PZiG-1000/1300-VTCE-HW
PZiG-1000-VTCF-UV (high-viscosity
specification only)
Ο Model Code
| PZiG |
300 |
- |
V |
T |
C |
E |
- |
H |
W |
ϑ |
| |
[1] |
- |
[a] |
[b] |
[c] |
[d] |
- |
[3] |
[4] |
[5] |
| |
|
|
[2] |
|
|
|
|
| [1] |
Model
(discharge volume
standard) |
300
500
700
1000
1300 |
: 340ml/min
: 530ml/min
: 760ml/min
:1000ml/min
:1300ml/min |
| [2] |
Liquid-end
Materials |
|
|
| |
[a] |
Liquid-end
Materials |
V
F
X |
: PVC
: PVDF
: Special
*SUS304 and SUS316
are available. |
| |
[b] |
Diaphragm |
T |
: PTFE |
| |
[c] |
Check
ball |
C
X |
: Ceramic
: Special |
| |
[d] |
O-ring |
E
F
T
X |
: EPDM
: Fluoro rubber
: PTFE
: Special |
| [3] |
Connection
type |
H
U |
:
Hose
: Union
*The union is
for the high-viscosity
specification
only. |
| [4] |
Valve
structure |
W
V |
: Standard
: High-viscosity |
| [5] |
Valve
structure |
None
X |
: Standard
: Special |
|
|
| |
| |
|
|
| |
|
